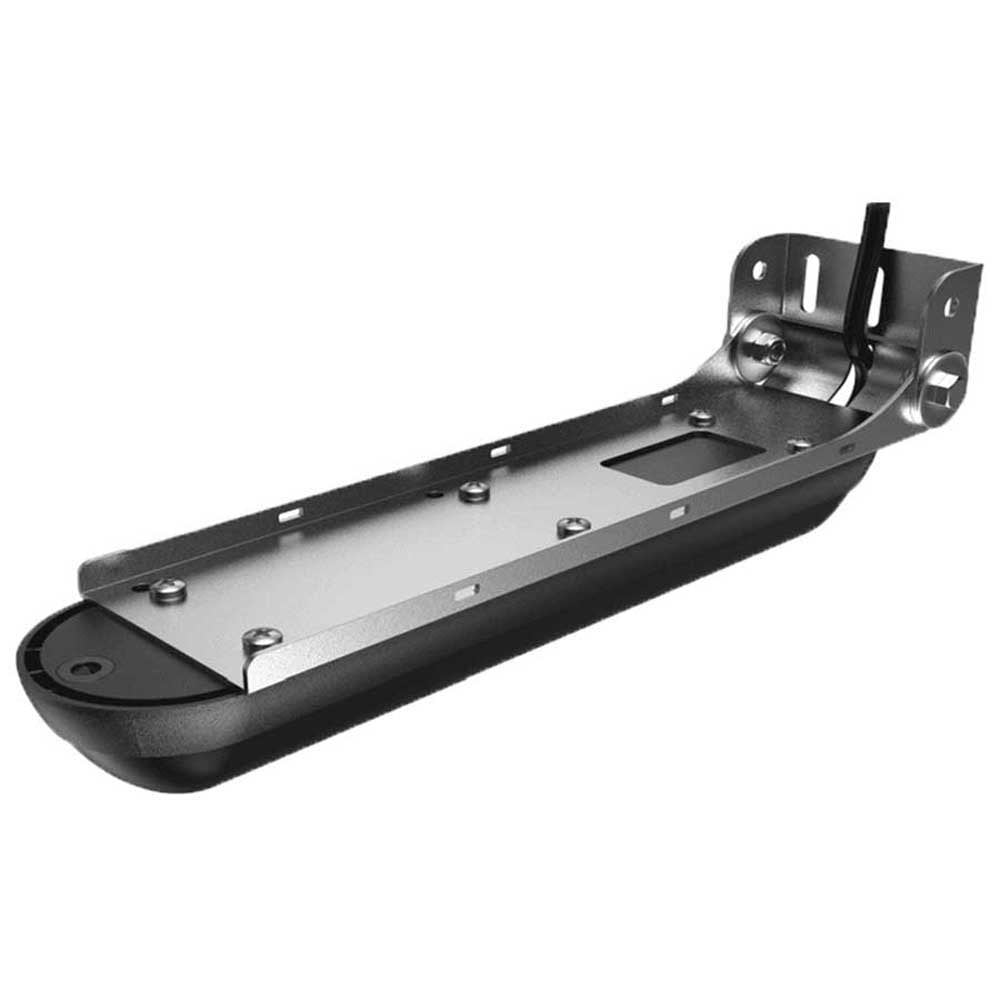

Lowrance Active Imaging™ 3-in-1 Chirp Transducer Med/High/DownScan/SideScan
Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ 3-in-1 sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure imaging technology.
Product Details
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Key Features
- More refined detail and better range than any other imaging technology
- Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
- Easier target identification with FishReveal™ Smart Target View
- Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
- Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, Simrad Go series, Simrad Evo3s displays
Genel Bakış
| İletim Gücü | N / A |
| Trandsucer Frekansları | 83/200/455/800kHz, Orta / Yüksek CHIRP |
Sonar SideScan Görüntüleme
| Maksimum Aralık | Her bir tarafa 455 kHz ─ 600 '(182 m), 300' (91 m); Her bir tarafa 800 kHz ─ 200 '(60 m), 100' (30 m) |
| Max Hız | 35 mil (56 km / saat) |
| Nesneleri İşaretle | 15 mil (24 km / s) |
| Optimum Hız | 10 mil (16 kph) veya daha az |
DownScan Imaging ™
| Maksimum Derinlik | Tatlı Suda 300 '(92 m) - Tuzlu Suda (65 m) |
| Max Hız | 55 mil (88 km / saat) |
| Nesneleri İşaretle | 35 mil (56 km / saat) |
| Optimum Hız | 10 mil (16 kph) veya daha az |
Teknik / Çevre
| Ürün Genişliği | 2,3 ”(59,2 mm) |
| Ürün Uzunluğu | 10,2 inç (259 mm) |
Ağ Bağlayıcıları
| Konektörler | xSonic (9-pin) |
Diğer
| Kablo | 25ft '(7.6 m) |
