NSPL-500 AİS/VHF Anten Ayırıcı

NSPL-500 AIS/VHF Antenna Splitter

What’s in the box?

The Gallery image four shows the items included with the NSPL-500. The following give a brief overview of each item.

• Product manual:The product manual is this document and should be read thoroughly prior to any attempt to install or use the NSPL-500.
• VHF radio connection cable. This cable is used to connect a VHF radio to the NSPL-500. The cable has PL259 connectors at either end and requires a SO239 connector on the VHF radio. If your VHF radio does not have a SO239 connector

please contact your dealer for details of suitable adaptors.

• AIS transceiver connection cable: This cable is used to connect a Class-B AIS transceiver, such as the NAIS-500 to the NSPL-500. The cable has a BNC connector at one end (for connection to the NSPL-500) and a PL259 connection at the opposite end (for connection to the AIS transceiver).

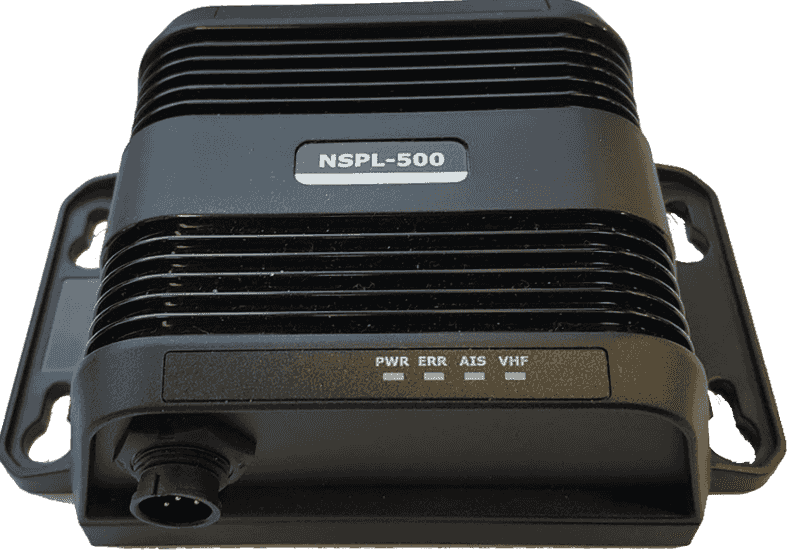

• NSPL-500 AIS/VHF antenna splitter unit. The NSPL-500 has a number of indicators which provide information to the user about the status of the NSPL-500.
• Power and FM cable. The power and FM cable connects to the NSPL-500 and enables connection to power and an FM radio antenna input.
