Precision-9 Pusula Anten
Kategori
Marka
Stok Kodu
000-12607-001
Garanti Süresi
24 Ay
Fiyat
873,00 EUR + KDV
Havale
36.942,57 TL
(%5,00 havale indirimi)
5.783,35 TL den başlayan taksitlerle!!
38.886,91 TL

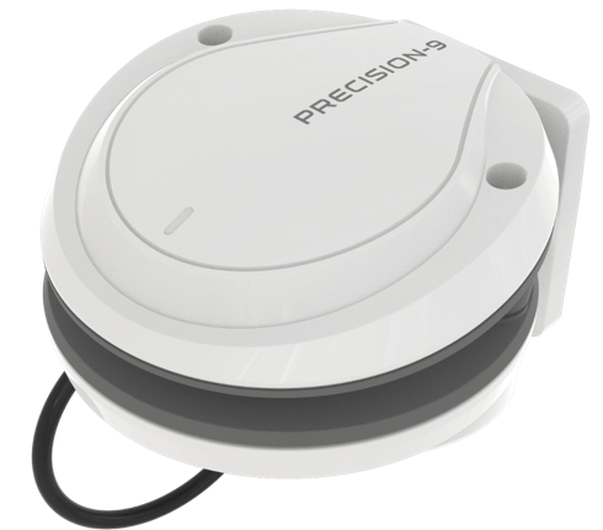

The Precision-9 Compass. Outputs Heading (20Hz), Rate Of Turn (20 Hz), roll, and pitch (10 hZ) over the NMEA 2000® network.
The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.
Unique selling points
- Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000®
- Heading and ROT calculated using sensor data from 9 axes of rotation and motion
- Accurate and reliable solid-state sensor technology
- Heading accuracy of ±2° after calibration
- Easily adjustable mounting bracket allows bulkhead or up-mast installation
- IPX7 waterproof. Best in class.
- Simple installation with a single NMEA 2000® connection
| Dimensions: | H: 36 mm (1.42”), W & D: 119 mm (4.69”) |
| Weight: | Module:|165 g (5.8 oz), Bracket:|130 g (4.6 oz) |
| Supply and interface: | 8-16 V via NMEA 2000 |
| Power consumption: | 0.4 W |
| NMEA 2000 Load Equivalence No. (LEN): | 1 |
| NMEA 2000 ports (input/output): | 1 |
| Calibration: | Automatic (User Prompted) |
| Repeatability: | ± 1.0° (or better) |
| Roll/Pitch range: | ± 45° |
| Heading accuracy: | ± 2° after calibration |
| Dynamic performance: | with random excitation of ± 10° at max 1 Hz:|Heading error <2°: with heading step input of 90° at a rate of 10°/s: |Heading error 10 sec. after turn <2° |
| Environmental protection: | IPx7 |
| Compass safe distance: | 0.5 m (1.7’) |
| Temperature range operation: | -25 to +65°C (-13 to +149°F) |
| Temperature range Storage: | -30 to +70°C (-22 to +158°F) |
