RS 20 VHF Marin Telsiz
Kategori
Marka
Stok Kodu
000-14491-001
Garanti Süresi
24 Ay
Fiyat
440,00 EUR + KDV
Havale
16.987,69 TL
(%5,00 havale indirimi)
1.843,16 TL den başlayan taksitlerle!!
%10
17.881,78 TL
19.868,64 TL

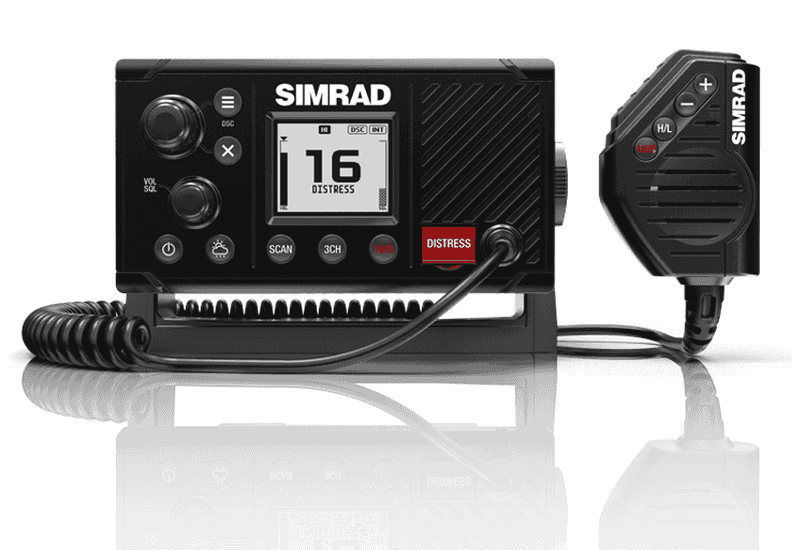

Simrad RS20 Class D DSC VHF Radio: Entry level VHF radio with NMEA2000 connectivity for GPS position, backlight control and night mode grouping with Simrad MFD’s.
Simrad RS20
- Replaces the current RS12 entry level VHF
- NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD’s
- NMEA0183 connectivity
- Receive GPS data from a compatible GPS unit
- Output DSC (for DSC call), DSE ( for enhanced position when doing Lat/Long request and Buddy Track).
- New front mountable mechanical design for easy installation
- Low profile design to align with style of Simrad MFD’s
- Full inbuilt country specific channel banks
- no requirement for LC programming or cloning
New features
Start up wizard
- Region & Country selection
- Enter MMSI
- Call sign
- GPS source selection
- Time offset
Improved SCAN features
- ALL SCAN
- ALL CHANNELS + 16
- MY CHANNELS
- MY CHANNELS + 16
Favourites shortcut
- Customizable favourite functions
- Defaults
- Contrast
- Sensitivity
- VHF info
Channel name
- My Channels
- Set Channels as favourite channels
- Enter favourite channel mode by long pressing channel dial
- Only favourite channels will be included in channel scrolling
Track up to 5 Buddies!
Track buddy is a feature that automatically requests the position of another VHF radio. Simply enter the MMSI of the VHF into your contact list, then start tracking!
- New feature for Simrad entry level VHF radios
- Polls your contacts for their Lat/Long position automatically
- Can be set to 1, 5, 15, 30 or 60 minute intervals
- Displays the position on a compatible chart plotter
- Great for keeping track of friends, family or vessels you need to know the position of
General
| Frequency Range: Transmit | 156.025～157.425 MHz |
| Frequency Range: Receive | 156.050～163.275 MHz |
| Number Of Channels | US / INT |
| Oscillate Mode | PLL |
| Modulation | FM(16KOG3E) DSC(16K0G2B) |
| Channel Spacing | 25KHz |
| Frequency Stability | ±5 PPM |
Temperature range_-15°C to +55°C (5°F to 131°F)
| Normal Working Voltage | +13.6 V DC |
| Minimum operating Voltage | ≤10 V DC |
| Low battery detect Voltage | 10.5 ± 0.5 V DC |
| Digital Selectivity Calling (DSC) | Class D |
RECEIVER
| Intermediate Frequency : 1st | 38.85/21.7 MHz |
| Intermediate Frequency : 2nd | 450 KHz |
| Sensitivity : 12dB SINAD | ≤-6 dBuV(EMF) |
| Squelch Sensitivity: at tight | ≤ 6 dBuV(EMF) |
Spurious Response Rejection Ratio ≥70 dB
| Adjacent Channel Selectivity | ≥70 dB |
| Intermodulation Response | ≥68 dB |
| S/N at 3KHz Dev. | ≥40 dB |
| Audio Output Power At THD 10% | ≥2.5 W |
| Audio Distortion | ≤10 % |
| Audio Response | +1 to -3dB of 6dB/octave from 300hz to 3kHz dB |
| Current Drain : Max Audio Power | ≤1.5 A |
| Current Drain : Stand-By | ≤0.5 A |
| 2ND RX Sensitivity For 12dB SINAD | ≤ 0 dBuV(EMF) |
| 2ND RX bit error ratio@-107dBm | ≤ 10-2 |
Transmitter
| Frequency error | ≤±1.5KHz |
| RF Power | Hi23W ± 2W :Lo 0.8W ± 0.2W |
| Maximum Deviation | ≤± 5 KHz |
| S/N at 3KHz Dev. | ≥40 dB |
| Modulation Distortion ±3KHz | ≤10 % |
| Audio Response at 1KHz Dev. | +1 to -3dB of 6dB/octave from 300hz to 3KHz |
| Spurious/Harmonic Emissions: Hi/LO | ≤0.25uW |
| Modulation Sensitivity | ≤15 mV |
| Current Drain At 12V DC | Hi Power ≤6A: Lo Power ≤1.5A |
| DSC TX deviation at 1.3K | 2.6±0.26 KHz |
| DSC TX deviation at 2.1K | 4.2±0.42KHz |
| ATIS TX deviation at 1.3 KHz | 1.3±0.13 KHz |
| ATIS TX deviation at 2.1 KHz | 2.1±0.21 KHz |
Not:
- Bu ürün Türk bayraklı teknelerde, kıyı emniyeti genel müdürlüğünün izinine tabidir.
