StructureScan® 3D Modül + Transducer
Kategori
Marka
Stok Kodu
000-12395-001
Garanti Süresi
24 Ay
Fiyat
1.423,00 EUR + KDV
Havale
61.044,14 TL
(%5,00 havale indirimi)
6.623,29 TL den başlayan taksitlerle!!
64.256,99 TL

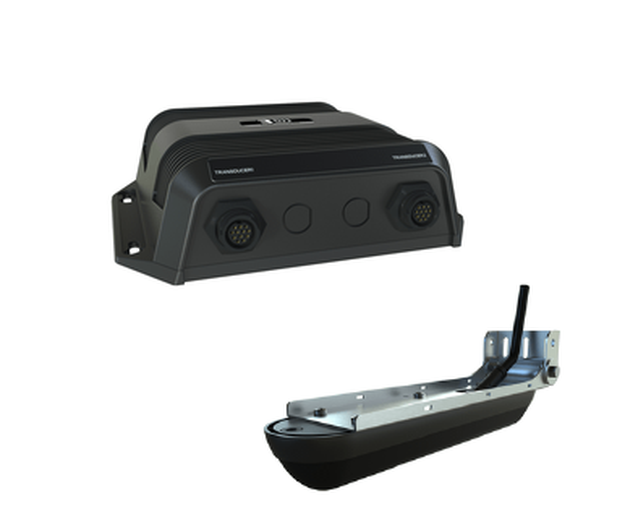

Simrad StructureScan 3D Module and Transom mount transdcuer
StructureScan® 3D provides a new and easy way to view and interpret StructureScan® HD Imaging data. StructureScan® 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan® 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat. Easier Visualization
- 3D visualizations can be viewed from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.
Master The Bottom Line
- For the first time, StructureScan® 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater. Eliminate confusion when fish aren’t on the banks and in shallow, visible cover. Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.
Technical/Environmental
Product Width180 mm / 7.1 inProduct Height57 mm / 2.2 inProduct Weight0.9 kg / 2 lbsOperating Temperature-28° to 75° C (-20° to 167° F)Water ResistanceIPX-7Power Supply (Supply Voltage)12 or 24 V DC(max range 9 V to 32 V DC)Sonar Performance StructureScan
Output Power500w RMSMax Side Range600ft each sideMax Down Range300 ftFrequency455kHzSix Cable Connections
Ethernet3 portsPower4 Pin power connector
Bu ürüne ilk yorumu siz yapın!
