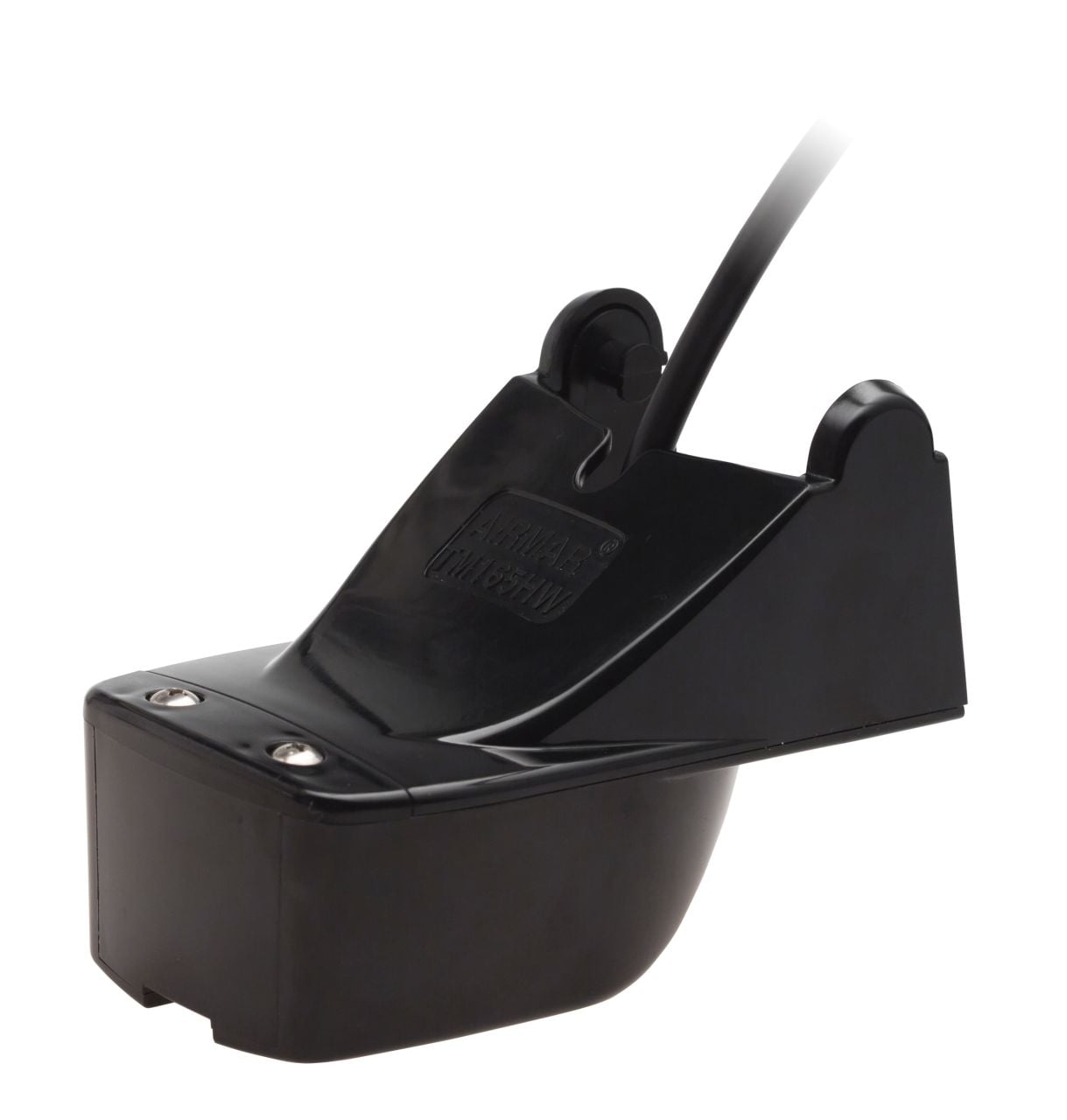

Maximize the coverage under your boat and see what you’ve been missing. The new TM165HW features a high-frequency range of 150 to 250 kHz and a super-wide beamwidth, averaging 30°, providing maximum coverage across the frequency band. In addition to improving the performance of Chirp-capable fishfinders, anglers using this new wide-beam transducer will achieve three-times the coverage compared to standard high-frequency Chirp-ready transducers.
Wide beamwidth, together with the high-frequency range, provides vast bottom coverage and precise fish detection in the upper-water column that can sometimes go unseen with narrow-beam transducers. Airmar’s new wide-beam format also creates crisper and larger return images on the display.
Compatibility:
- Lowrance - All units compatible except Hook series
- Raymarine - All compatible
- Simrad - All compatible
- Garmin - GPSMAP 7600,8600,7X2/9X2/10x2/ 12x2, GSD26
- Furuno: not until V4 software later in 2020
- Humminbird - Helix and Solix can be set manually. SM3000 sets parameters dynamically using XiD
Features
- Depth and fast-response water-temperature sensor
- 600 W with a maximum depth of 152 m (500’)
- High frequency: 150 to 250 kHz
- Super-wide 30° average beamwidth
- 100 kHz of total bandwidth from one transducer
- Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Plastic release bracket protects sensor from frontal impact
- Chemical and impact-resistant plastic housing
- Recommended for planing hulls
- Exclusive Xducer ID® technology
- Patent Pending
Specifications
- Weight: 0.5 kg (1.1 lb.)
- Recommended Boat Length: Up to 8 m (25’)
- Transom Angle: 2° to 22°
- Acoustic Window: Layered plastic urethane (LPU)
- Speed Range: Up to 44 knots (50 MPH)
- Cable Length: 9 m (29')
