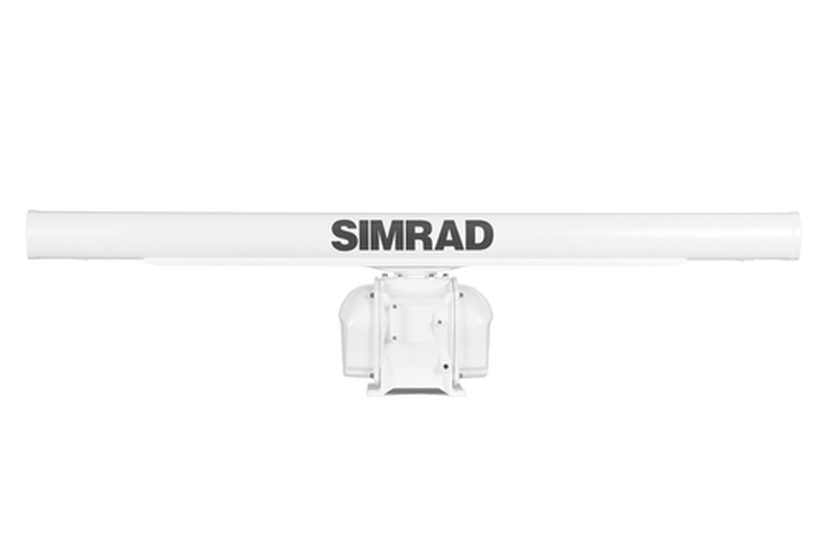

TXL-25S-7 LOW EMSN 25Kw Açık Anten Su Üstü Radarı
Kategori
Marka
Stok Kodu
PQRSUZ12
Garanti Süresi
24 Ay
Fiyat
13.009,00 EUR + KDV
Havale
524.249,69 TL
(%5,00 havale indirimi)
82.071,14 TL den başlayan taksitlerle!!
551.841,78 TL
Simrad TXL-25S-7 LOW Emission 25kW 7ft Antenna with 20m (65 ft) antenna cable, Radar processor,Ethernet cable Yellow MM 2 m (6.5 ft), Ethernet adapter cable RJ45 - 5 Pin yellow.
25kW HD Digital Radar The new Simrad Low Emission HD Digital 25kW radar system combine high performance open array scanners with a proven history of oceangoing reliability and the latest in digital signal processing. Experience unparalleled situational awareness, with exceptional detection of small or distant targets and minimised screen-clutter. Our new Low Emission 25 kW HD open array digital radar boasts exceptional detection of small or distant targets using our advanced Digital Signal Processing technology. Screen clutter in any weather is virtually eliminated, allowing a clear, accurate and easy to interpret image. The 25kW open array is ideal for larger motorboats 50ft+ in length.
- Back by popular demand – a high performance 25kW 7’ model
- New Array Radar available in September 2014.
- All new 25kW 7-foot model - great for vessels with limited space
- perfect with new Simrad NSO evo2 systems
- All models feature new Long-life magnetrons and brush-less motors
- All models have reduced emission levels that exceed 2015 regulatory changes and offer safer operation
- Compatible with all Simrad current radar displays: NSE, NSS, NSS evo2 and NSO evo2
- Meet tough IMO IEC62388 Annex D target detection specifications and triggers RACONS and SARTS at required 5nm range
- Commercial design with 100kt sustained windload rating
- Automatic Tune, Gain and Sea Clutter adjustments
- Automatic Harbour and Offshore modes
- Dual EBL/VRM and Dual Guard zones
- Radar overlay on charts and 10-target MARPA tracking with optional heading sensor
- iPad/Android tablet control with optional Go Free wireless module
- For 24V DC systems only
NOTE: TXL-10S-6 replaces TX10S-1. The following part is obsolete: TX10S-1 (TX10S-1 TX10S 10KW 6'OPN ARRY W/20M CA). Please order 000-11478-001 instead.
| Type of emission | PON - Passed FCC/IC/R&TTE Type Certification:,FCC ID: CKENKE2254, IC ID: 768C-NKE2254, R&TTE: Telefication CE0560 |
| Ambient conditions | According to IEC60945-4 |
| Operating Temperature | -25 to +55°C |
| Relative humidity | +40°C, 93% RH |
| Vibration | Amplitude 2 to 13.2Hz, +/-1mm +/- 10%, Amplitude 13.2 to 100Hz, Gravity acceleration 7m/sec2 |
| Waterproof | IPX6 |
| Relative wind velocity | 51.5 m/sec (100 Knots) |
| Power consumption | 240W (Max.) in maximum wind velocity |
| DC input | 21.6 to 31.2 V (DC 24 Volt Systems) |
| Pre-heating time | Minimum 180 sec |
| Outside dimensions | Height 536mm x Swing Circle Diameter 2270mm |
| Mass | 58kg+/-10% |
| Plane of polarization | Horizontal Polarization |
| Beam width | Horizontal 1.0°+/-10% (-3dB width), Vertical 20° +20% (-3dB width) |
| Side lobe level | Below -26dB max. (within ±10°), Below -30dB max. (outside ±10°) |
| Rotation | 24 rpm (Min 20rpm at Max 100Knots) |
| Transmitter frequency | 9410±30MHz |
| Peak power output | 25kW±50% under any pulse condition |
| Transmitter tube | Magnetron NJRC Model M1568BS |
Pulse length/Pulse Repetition Frequency 0.07µS+/-30%/2250Hz +/-5%, 0.20µS+/-25%/2250Hz +/-5%, 0.30µS+/-25%/1900Hz+/-5%, 0.40µS+/-25%/1400Hz+/-5%, 0.80µS+/-25%/750Hz+/-5%, 1.0µS+/-25%/650Hz+/-5%, 1.2µS+/-25%/510Hz+/-5%
| Duplexer | Circulator NJC3901M and Diode Limiter NJS6930 |
| Mixer | MIC front-end NRG-162 |
| IF amplifier | Center frequency 60MHz +/-3MHz Bandwidth, 25MHz +/-3MHz (0.07µS), 8MHz +/ -2MHz(0.2µS, 0.3µS, 0.4µS), 3MHz +/-1MHz (0.8µS, 1.0µS, 1.2µS), Gain| 90dB min., Characteristic| Log, Output| -2V for 100dB Typical, Bandwidth controlled by serial port |
| Noise figure | 7.5dB (Average) |
| Com Port | RS485 9600bps Half Duplex Propriety Digital COM Specification |
| Standard scanner cable length | 20m (packed in carton) |
| Maximum allowable scanner cable length | 30m |
