3 kW

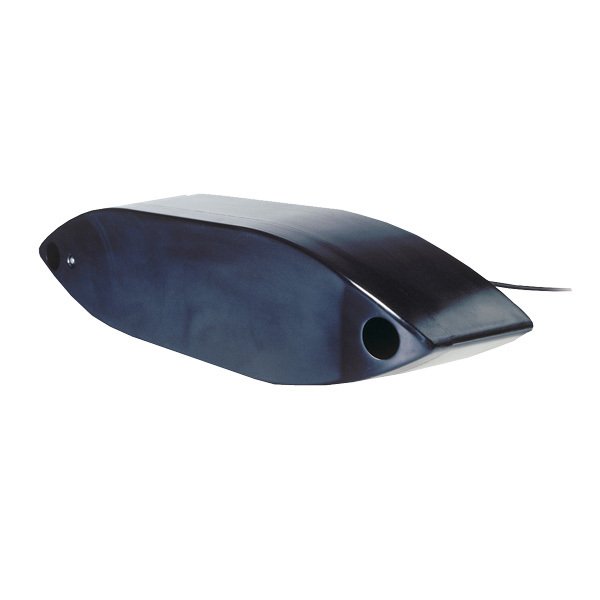

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').
The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3,048 m (10,000'). Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.
Features
- Depth and fast-response water-temperature sensor
- 3 kW for superior deep-water performance from the low frequency
- 3 kW for superior deep-water performance from the low frequency
- 23° to 9° port-starboard beam
- 11° to 5° fore-aft beamw
- Maximum depth performance to 3,048 m (10,000')
- 1 kW high frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth performance of 152 m (500')
- 132 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
- High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Urethane housing with fairing for optimal performance
- Also available as a pocket/keel (CM599LHW) mount
- Exclusive Xducer ID® technology
Specifications
- Weight: 20.8 kg (46 lb.)
- Recommended Boat Length: 9m (30') and above
- Hull Material: Compatible with all hull materials
- Hull Deadrise: Up to 22°
- Acoustic Window: Epoxy/urethane
- Includes: Fairing and mounting hardware
- Transducer Element: 25 internal broadband ceramic assemblies
